Conveyor Laser Cutting Machine

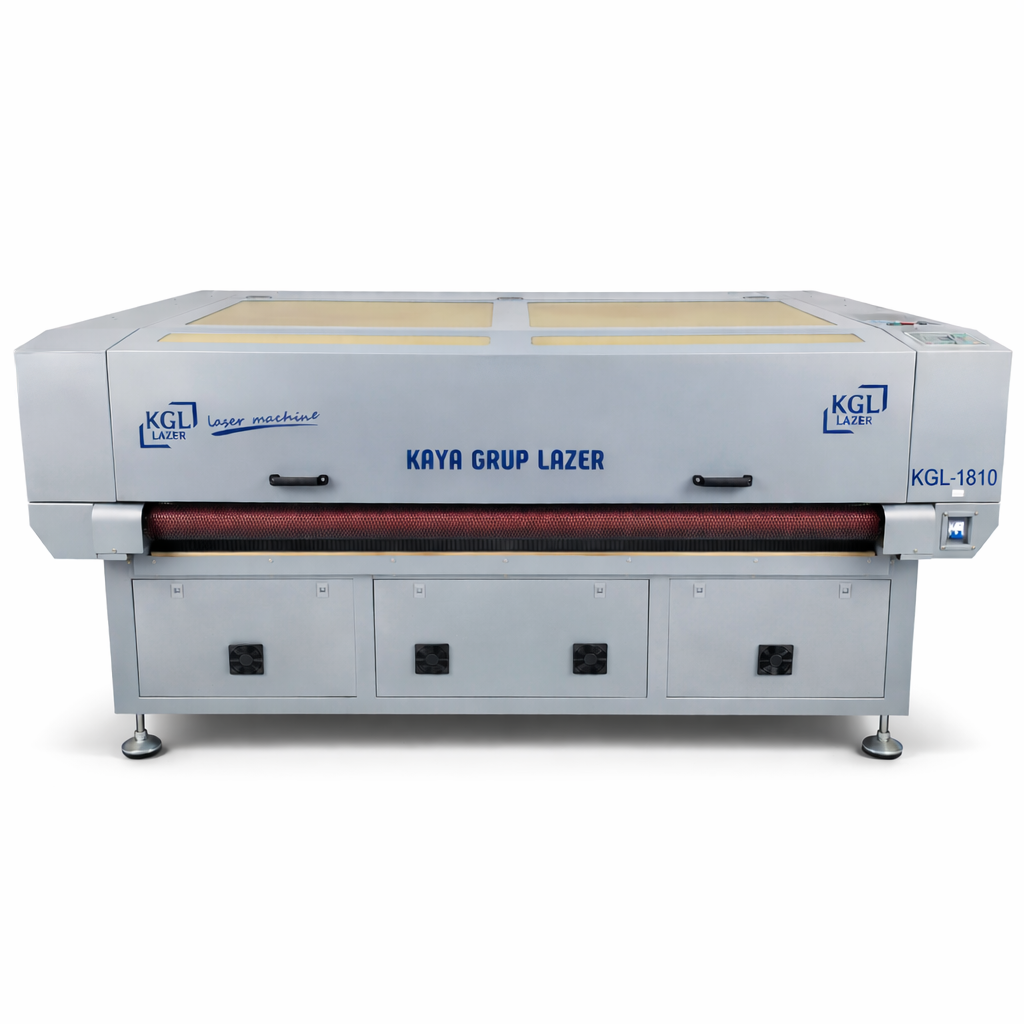

The machine in the image is the KGL 1810 FET Conveyor Belt System Laser Cutting Machine. It has a 100*180 cm working area, 130W power, and a double head. It can cut in continuous lengths (15-25-50 meters, etc.) even though the width is 180 cm. It is especially suitable for products in rolls and bundles. Instead of placing your products in sheets or divided into sections, it allows you to cut them very quickly and accurately in rolls and bundles. Areas of Use: Garment & Textile & Home Textile & Footwear (fabric, leather, wool, denim, gloves, felt, curtains, upholstery, carpet, EVA, etc.), also Furniture & Advertising & Decoration (wood, MDF, acrylic, plexiglass, rubber, plastic, paper, PVC, ABS, etc.). It can cut non-metallic products.
Compatible Materials
Technical Specifications
| WORK AREA | X-direction 1800mm / Y-direction 1000mm |
| LASER POWER | MINIMUM 130W - MAXIMUM 150W |
| WORKING SYSTEM | CONVEYOR BELT SYSTEM |
| FOCUS | 2'' Focusing Lens (IIVI-infrared) |
| COOLING SYSTEM | Industrial Gas-Assisted Water Cooling System |
| LASER WELDING TIME | 8000 hours |
| SMOKE EXTRACTION MOTOR | 750 w |
| WORK SCREEN | RD6442 |
| DRIVER MOTOR | STEP MOTOR |
| AXES SYSTEM / QUALITY | HIGH WORKING PRECISION |
| CONTROL SYSTEM | RD SOFTWARE |
| ELECTRICITY REQUIREMENTS | 220 VAC - 50-60 Hz |
| ENERGY CONSUMPTION | 0.78 kW/hour |
| OPERATING TEMPERATURE | 18-32 C |
| PROGRAM FORMATS | bmp. jpg. tif. Dxf. Dst. Plt. Etc. |
| WORK PRECISION | 0,02 /800 mm |
| SINGLE LINE SCANNING SPEED | 800mm /s. |
| MACHINE DIMENSIONS (L*W*H)(mm) | 2380*1960*1200mm |
| WEIGHT (Kgs) | 800Kgs |
